A synthesis of performance and a perfectly integrated overall system with a ground-breaking safety concept that sets Deep Blue apart from all other electric drive systems on the market, Transparent maintenance overhead - an electric drive system requires far less maintenance than comparable drive systems using fossil fuel. Shaft length: 51 cm (short shaft) / 63.5 cm (long shaft).
It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market. All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.

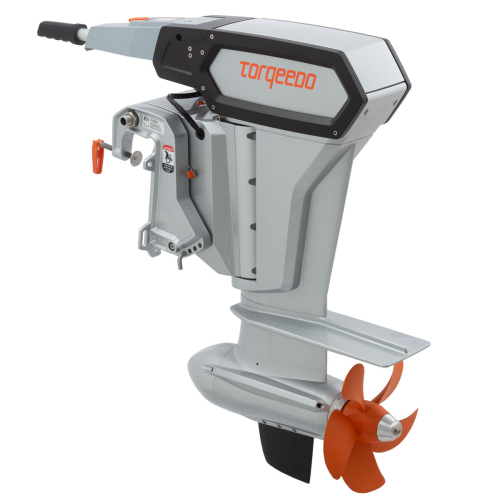

Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system, TorqLink (see below for further information), which allows faster and more accurate data sharing between system components.
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons. The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons. The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons. The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Cruise 6.0 is a 48-Volt, 9.9 horsepower-equivalent outboard perfect for boats up to 6 tons. The Cruise 6.0 R ships with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles. All Cruise systems have a built-in GPS with on-board computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon with advanced helical gear design.
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP). All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (include). The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP). All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (include). The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP). All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (Includes).
A class of its own in lithium batteries for boats: 70% more energy density and 50% longer cycle life than typical lithium LiFePO4 batteries. With Power 48-5000, Torqeedo brings a new class of lithium batteries to the market. Based on automotive technology and BMW i battery modules, Power 48-5000 delivers industry-leading value with its combination of energy density, long service life, ISO standards compliance, and cost.
The perfect high-end lithium battery for the Cruise. Or for your on-board power supply.
Choosing lithium means choosing high performance. Choosing the Power 24-3500, also means choosing an unrivalled level of professional safety. The Power 24-3500 is equipped with a comprehensive safety system combining the requirement for general operating safety with safety in maritime use.
Thanks to plug&play, the Power 24-3500 can be installed and activated in a few short steps. And with a 5-stage safety concept it is arguably the safest battery of its kind for boats.Its long life expectancy and low capacity losses are convincing.
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions. With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
Travel XP is the most powerful outboard with an integrated battery available from industrial production. This 5 HP-equivalent, high-thrust outboard is perfect for heavier boats up to 2 tons or more demanding applications, boating in coastal waters, or overcoming windy or wavy conditions. The ultra-quiet and reliable direct drive motor is lightweight and easy to handle at just 12.6 kg (27.8 lbs). It's easy to install and use, too, with a stable handle on the shaft head, a handy lever for quick steering adjustments (360°//±60°//fixed), and flexible tilt and trim positions. Emission-free boating just powered up - experience the Travel XP today!
Travel 903 presents itself in a functional and fresh design. Limited edition. Through a powerful evolution, it now offers an impressive 14% greater range compared to the Travel 1103 and is equipped with a highly efficient propeller. With an output of 900 W, it effortlessly powers boats up to 1.3 tonnes and is perfect for powering small sailing boats or exploring lakes and rivers with the family. It is unbeatable in the field of lightweight electric outboard motors and promises you an almost silent glide through the water and powerful thrust – 100% emission-free. It will redefine your boating experience – with the best value for money, no less!
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions. With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
Torqeedo Deep Blue 50 R Long Shaft Electric Outboard Motor 80HP NEW (Deep Blue 50 R)
Torqeedo Deep Blue 50 R Long Shaft Electric Outboard Motor 80HP NEW
It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.
All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.
We provide up to 9-year warranty on Deep Blue's battery capacity with private use.
Benefits:
Deep Blue: the first high-power propulsion system in serial production - fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water
An overall concept that is unique in terms of safety, performance and range
Battery life traceability: Battery ageing is transparent and can be tracked by the user in the on-board computer at any time.
Specifications :
Input power continuous (peak)
27.5 kW
Mech. Output power at shaft continuous (peak)
25 kW
Nominal voltage
350 V
Min. voltage for full performance
330 V
Contiuous torque / max. torque
129 Nm / -
Max. shaft rpm
1830 1/min
Maximum efficiency el. input to mech. output
89%
Comparable petrol outboards (shaft power)
40 HP
Maximum overall efficiency
54 %
Motor weight including electronics and cabling
L: 139 kg
XL: 146 kg
Dimension L/W/H
868 x 394 x 1,535 mm
Shaft length
L: 20” / 51 cm
XL: 25“ / 63.5 cm
Standard propeller
Standard high speed propeller:
Diameter 12,5” /Pitch 15,8” / 5 Blade
Propeller Mounting
Gearcase: 4 ¼ “
Shaft: 13 teeth
Max. allowed ambient temperature
45°C
Max. drive temperature controller / motor
90°C / 130°C
Cooling
Direct water cooling
Max. inlet temperature
35°C
Protection Category
IP 67
Conformity
IEC 60034-1
IEC 60349-2
IEC 60146-1-1
Tilting and trim device
Electric tilt and trim
INCLUDED :
Outboard motor
Cabling
Standard high speed propeller
Electric tilt and trim
It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.
All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.
We provide up to 9-year warranty on Deep Blue's battery capacity with private use.
Benefits:
Deep Blue: the first high-power propulsion system in serial production - fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water
An overall concept that is unique in terms of safety, performance and range
Battery life traceability: Battery ageing is transparent and can be tracked by the user in the on-board computer at any time.
Specifications :
Input power continuous (peak)
27.5 kW
Mech. Output power at shaft continuous (peak)
25 kW
Nominal voltage
350 V
Min. voltage for full performance
330 V
Contiuous torque / max. torque
129 Nm / -
Max. shaft rpm
1830 1/min
Maximum efficiency el. input to mech. output
89%
Comparable petrol outboards (shaft power)
40 HP
Maximum overall efficiency
54 %
Motor weight including electronics and cabling
L: 139 kg
XL: 146 kg
Dimension L/W/H
868 x 394 x 1,535 mm
Shaft length
L: 20” / 51 cm
XL: 25“ / 63.5 cm
Standard propeller
Standard high speed propeller:
Diameter 12,5” /Pitch 15,8” / 5 Blade
Propeller Mounting
Gearcase: 4 ¼ “
Shaft: 13 teeth
Max. allowed ambient temperature
45°C
Max. drive temperature controller / motor
90°C / 130°C
Cooling
Direct water cooling
Max. inlet temperature
35°C
Protection Category
IP 67
Conformity
IEC 60034-1
IEC 60349-2
IEC 60146-1-1
Tilting and trim device
Electric tilt and trim
INCLUDED :
Outboard motor
Cabling
Standard high speed propeller
Electric tilt and trim
A synthesis of performance and a perfectly integrated overall system with a ground-breaking safety concept that sets Deep Blue apart from all other electric drive systems on the market, Transparent maintenance overhead - an electric drive system requires far less maintenance than comparable drive systems using fossil fuel. Shaft length: 51 cm (short shaft) / 63.5 cm (long shaft).
Torqeedo Deep Blue 25R Long Shaft Electric Outboard Motor 40HP NEW (Deep Blue 25R)
Torqeedo Deep Blue 25R Long Shaft Electric Outboard Motor 40HP NEW
It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.
All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.
We provide up to 9-year warranty on Deep Blue's battery capacity with private use.
Benefits
Deep Blue: the first high-power propulsion system in serial production - fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water
An overall concept that is unique in terms of safety, performance and range
Battery life traceability: Battery ageing is transparent and can be tracked by the user in the on-board computer at any time.
Specifications :
Input power continuous (peak)
27.5 kW
Mech. Output power at shaft continuous (peak)
25 kW
Nominal voltage
350 V
Min. voltage for full performance
330 V
Contiuous torque / max. torque
129 Nm / -
Max. shaft rpm
1830 1/min
Maximum efficiency el. input to mech. output
89%
Comparable petrol outboards (shaft power)
40 HP
Maximum overall efficiency
54 %
Motor weight including electronics and cabling
L: 139 kg
XL: 146 kg
DimensionL/W/H
868 x 394 x 1,535 mm
Shaft length
L: 20” / 51 cm
XL: 25“ / 63.5 cm
Standard propeller
Standard high speed propeller:
Diameter 12,5” /Pitch 15,8” / 5 Blade
Propeller Mounting
Gearcase: 4 ¼ “
Shaft: 13 teeth
Max. allowed ambient temperature
45°C
Max. drive temperature controller / motor
90°C / 130°C
Cooling
Direct water cooling
Max. inlet temperature
35°C
Protection Category
IP 67
Conformity
IEC 60034-1
IEC 60349-2
IEC 60146-1-1
Tilting and trim device
Electric tilt and trim
INCLUDED :
Cabling
Standard high speed propeller
Electric tilt and trim
Torqeedo Deep Blue 50 R Long Shaft Electric Outboard Motor 80HP NEW
It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.
All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.
We provide up to 9-year warranty on Deep Blue's battery capacity with private use.
Benefits
Deep Blue: the first high-power propulsion system in serial production - fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water
An overall concept that is unique in terms of safety, performance and range
Battery life traceability: Battery ageing is transparent and can be tracked by the user in the on-board computer at any time.
Specifications :
Input power continuous (peak)
27.5 kW
Mech. Output power at shaft continuous (peak)
25 kW
Nominal voltage
350 V
Min. voltage for full performance
330 V
Contiuous torque / max. torque
129 Nm / -
Max. shaft rpm
1830 1/min
Maximum efficiency el. input to mech. output
89%
Comparable petrol outboards (shaft power)
40 HP
Maximum overall efficiency
54 %
Motor weight including electronics and cabling
L: 139 kg
XL: 146 kg
DimensionL/W/H
868 x 394 x 1,535 mm
Shaft length
L: 20” / 51 cm
XL: 25“ / 63.5 cm
Standard propeller
Standard high speed propeller:
Diameter 12,5” /Pitch 15,8” / 5 Blade
Propeller Mounting
Gearcase: 4 ¼ “
Shaft: 13 teeth
Max. allowed ambient temperature
45°C
Max. drive temperature controller / motor
90°C / 130°C
Cooling
Direct water cooling
Max. inlet temperature
35°C
Protection Category
IP 67
Conformity
IEC 60034-1
IEC 60349-2
IEC 60146-1-1
Tilting and trim device
Electric tilt and trim
INCLUDED :
Cabling
Standard high speed propeller
Electric tilt and trim
Torqeedo Deep Blue 50 R Long Shaft Electric Outboard Motor 80HP NEW
It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market. All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.
Torqeedo Cruise 12.0 RS TorqLink Electric Outboard NEW (Cruise 12.0 RS)
Torqeedo Cruise 12.0 RS TorqLink Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system, TorqLink (see below for further information), which allows faster and more accurate data sharing between system components.
12 kW continuous power - powerful propulsion like a 25 hp combustion engine
TorqLink data interface - enables fast data exchange between TorqLink components without gateway
Electric tilting device for comfortable operation
Easy handling thanks to low-voltage design (48 volts)
Very robust construction - corrosion-protected, seawater-proof and waterproof all around (IP67)
Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 12,000 W input power, equivalent to a 25 HP petrol outboard
Pair with two or more Power 48-5000 for best performance and accurate range/runtime functionality
This model ships with remote steering link arm
Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with colour display)
Rugged aluminium pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
Specifications :
Input power in watts
12,000
Propulsive power in watts
6720
Comparable petrol outboards (propulsive power)
25 CV
Comparable petrol outboards (thrust)
25 CV
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Weight in kg (w/o cables & main switch)
59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Maximum propeller speed in rpm
1,400
Control
Remote throttle
TorqLink
Yes
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with TorqLink data communication
TorqLink throttle with color display
connection to remote steering
cable set (4.5 m, 95 mm2) including main switch
v22/p10k propeller
TorqLink data cable 3 m
Tilt switch
Also you can check product : Torqeedo Cruise 12.0 RL TorqLink Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system, TorqLink (see below for further information), which allows faster and more accurate data sharing between system components.
12 kW continuous power - powerful propulsion like a 25 hp combustion engine
TorqLink data interface - enables fast data exchange between TorqLink components without gateway
Electric tilting device for comfortable operation
Easy handling thanks to low-voltage design (48 volts)
Very robust construction - corrosion-protected, seawater-proof and waterproof all around (IP67)
Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 12,000 W input power, equivalent to a 25 HP petrol outboard
Pair with two or more Power 48-5000 for best performance and accurate range/runtime functionality
This model ships with remote steering link arm
Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with colour display)
Rugged aluminium pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
Specifications :
Input power in watts
12,000
Propulsive power in watts
6720
Comparable petrol outboards (propulsive power)
25 CV
Comparable petrol outboards (thrust)
25 CV
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Weight in kg (w/o cables & main switch)
59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Maximum propeller speed in rpm
1,400
Control
Remote throttle
TorqLink
Yes
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with TorqLink data communication
TorqLink throttle with color display
connection to remote steering
cable set (4.5 m, 95 mm2) including main switch
v22/p10k propeller
TorqLink data cable 3 m
Tilt switch
Also you can check product : Torqeedo Cruise 12.0 RL TorqLink Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system, TorqLink (see below for further information), which allows faster and more accurate data sharing between system components.
Torqeedo Cruise 12.0 RXL TorqLink Electric Outboard NEW (Cruise 12.0 RXL)
Torqeedo Cruise 12.0 RXL TorqLink Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
12 kW continuous power - powerful propulsion like a 25 hp combustion engine
TorqLink data interface - enables fast data exchange between TorqLink components without gateway
Electric tilting device for comfortable operation
Easy handling thanks to low-voltage design (48 volts)
Very robust construction - corrosion-protected, seawater-proof and waterproof all around (IP67)
Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 12,000 W input power, equivalent to a 25 HP petrol outboard
Pair with two or more Power 48-5000 for best performance and accurate range/runtime functionality
This model ships with remote steering link arm
Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with colour display)
Rugged aluminium pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
Specifications :
Input power in watts
12,000
Propulsive power in watts
6720
Comparable petrol outboards (propulsive power)
25 CV
Comparable petrol outboards (thrust)
25 CV
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Weight in kg (w/o cables & main switch)
59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Maximum propeller speed in rpm
1,400
Control
Remote throttle
TorqLink
Yes
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with TorqLink data communication
TorqLink throttle with color display
connection to remote steering
cable set (4.5 m, 95 mm2) including main switch
v22/p10k propeller
TorqLink data cable 3 m
Tilt switch
Also you can check product : Torqeedo Deep Blue 50 R Long Shaft Electric Outboard Motor 80HP NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
12 kW continuous power - powerful propulsion like a 25 hp combustion engine
TorqLink data interface - enables fast data exchange between TorqLink components without gateway
Electric tilting device for comfortable operation
Easy handling thanks to low-voltage design (48 volts)
Very robust construction - corrosion-protected, seawater-proof and waterproof all around (IP67)
Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 12,000 W input power, equivalent to a 25 HP petrol outboard
Pair with two or more Power 48-5000 for best performance and accurate range/runtime functionality
This model ships with remote steering link arm
Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with colour display)
Rugged aluminium pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
Specifications :
Input power in watts
12,000
Propulsive power in watts
6720
Comparable petrol outboards (propulsive power)
25 CV
Comparable petrol outboards (thrust)
25 CV
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Weight in kg (w/o cables & main switch)
59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Maximum propeller speed in rpm
1,400
Control
Remote throttle
TorqLink
Yes
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with TorqLink data communication
TorqLink throttle with color display
connection to remote steering
cable set (4.5 m, 95 mm2) including main switch
v22/p10k propeller
TorqLink data cable 3 m
Tilt switch
Also you can check product : Torqeedo Deep Blue 50 R Long Shaft Electric Outboard Motor 80HP NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
Torqeedo Cruise 12.0 RL TorqLink Electric Outboard NEW (Cruise 12.0 RL)
Torqeedo Cruise 12.0 RL TorqLink Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
12 kW continuous power - powerful propulsion like a 25 hp combustion engine
TorqLink data interface - enables fast data exchange between TorqLink components without gateway
Electric tilting device for comfortable operation
Easy handling thanks to low-voltage design (48 volts)
Very robust construction - corrosion-protected, seawater-proof and waterproof all around (IP67)
Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 12,000 W input power, equivalent to a 25 HP petrol outboard
Pair with two or more Power 48-5000 for best performance and accurate range/runtime functionality
This model ships with remote steering link arm
Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with colour display)
Rugged aluminium pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
Specifications :
Input power in watts
12,000
Propulsive power in watts
6720
Comparable petrol outboards (propulsive power)
25 CV
Comparable petrol outboards (thrust)
25 CV
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Weight in kg (w/o cables & main switch)
59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Maximum propeller speed in rpm
1,400
Control
Remote throttle
TorqLink
Yes
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with TorqLink data communication
TorqLink throttle with color display
connection to remote steering
cable set (4.5 m, 95 mm2) including main switch
v22/p10k propeller
TorqLink data cable 3 m
Tilt switch
Also you can check product : Torqeedo Cruise 12.0 RXL TorqLink Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
12 kW continuous power - powerful propulsion like a 25 hp combustion engine
TorqLink data interface - enables fast data exchange between TorqLink components without gateway
Electric tilting device for comfortable operation
Easy handling thanks to low-voltage design (48 volts)
Very robust construction - corrosion-protected, seawater-proof and waterproof all around (IP67)
Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 12,000 W input power, equivalent to a 25 HP petrol outboard
Pair with two or more Power 48-5000 for best performance and accurate range/runtime functionality
This model ships with remote steering link arm
Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with colour display)
Rugged aluminium pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
Specifications :
Input power in watts
12,000
Propulsive power in watts
6720
Comparable petrol outboards (propulsive power)
25 CV
Comparable petrol outboards (thrust)
25 CV
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Weight in kg (w/o cables & main switch)
59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Maximum propeller speed in rpm
1,400
Control
Remote throttle
TorqLink
Yes
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with TorqLink data communication
TorqLink throttle with color display
connection to remote steering
cable set (4.5 m, 95 mm2) including main switch
v22/p10k propeller
TorqLink data cable 3 m
Tilt switch
Also you can check product : Torqeedo Cruise 12.0 RXL TorqLink Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system.
Torqeedo Cruise 10.0 TXL Electric Outboard NEW (Cruise 10.0 TXL)
Torqeedo Cruise 10.0 TXL Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.
The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Tiller-equipped version of the Cruise 10.0
12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
Electric tilting device for ease of operation
Easy handling thanks to low-voltage level (48 Volt)
Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
Slimline construction - elegant and modern
Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
Rugged pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater.
Specifications :
Input power in watts
10,000
Propulsive power in watts
5,600
Comparable petrol outboards (propulsive power)
20 HP
Comparable petrol outboards (thrust)
25 HP
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Total weight in kg
60.3 (S) / 61.8 (L) / 63.0 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Propeller Guide
Maximum propeller speed in rpm
1,400
Control
Remote throttle
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Motor with tiller control and integrated on-board computer with display
emergency stop magnetic chip
connection cable set for two Power 48-5000 batteries (total length approx. 4.5 m) incl. main switch and battery terminal screws
5-pin data cable (5m), standard propeller v22/p10k and sacrificial anodes (Al)
TorqLink Gateway Set (2217-00)
Also you can check product : Torqeedo Cruise 10.0 TL Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.
The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Tiller-equipped version of the Cruise 10.0
12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
Electric tilting device for ease of operation
Easy handling thanks to low-voltage level (48 Volt)
Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
Slimline construction - elegant and modern
Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
Rugged pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater.
Specifications :
Input power in watts
10,000
Propulsive power in watts
5,600
Comparable petrol outboards (propulsive power)
20 HP
Comparable petrol outboards (thrust)
25 HP
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Total weight in kg
60.3 (S) / 61.8 (L) / 63.0 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Propeller Guide
Maximum propeller speed in rpm
1,400
Control
Remote throttle
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Motor with tiller control and integrated on-board computer with display
emergency stop magnetic chip
connection cable set for two Power 48-5000 batteries (total length approx. 4.5 m) incl. main switch and battery terminal screws
5-pin data cable (5m), standard propeller v22/p10k and sacrificial anodes (Al)
TorqLink Gateway Set (2217-00)
Also you can check product : Torqeedo Cruise 10.0 TL Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons. The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Torqeedo Cruise 10.0 TL Electric Outboard NEW (Cruise 10.0 TL)
Torqeedo Cruise 10.0 TL Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.
The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Tiller-equipped version of the Cruise 10.0
12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
Electric tilting device for ease of operation
Easy handling thanks to low-voltage level (48 Volt)
Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
Slimline construction - elegant and modern
Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
Rugged pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater.
Specifications :
Input power in watts
10,000
Propulsive power in watts
5,600
Comparable petrol outboards (propulsive power)
20 HP
Comparable petrol outboards (thrust)
25 HP
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Total weight in kg
60.3 (S) / 61.8 (L) / 63.0 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Propeller Guide
Maximum propeller speed in rpm
1,400
Control
Remote throttle
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Motor with tiller control and integrated on-board computer with display
emergency stop magnetic chip
connection cable set for two Power 48-5000 batteries (total length approx. 4.5 m) incl. main switch and battery terminal screws
5-pin data cable (5m), standard propeller v22/p10k and sacrificial anodes (Al)
TorqLink Gateway Set (2217-00)
Also you can check product : Torqeedo Cruise 10.0 TS Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.
The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Tiller-equipped version of the Cruise 10.0
12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
Electric tilting device for ease of operation
Easy handling thanks to low-voltage level (48 Volt)
Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
Slimline construction - elegant and modern
Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
Rugged pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater.
Specifications :
Input power in watts
10,000
Propulsive power in watts
5,600
Comparable petrol outboards (propulsive power)
20 HP
Comparable petrol outboards (thrust)
25 HP
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Total weight in kg
60.3 (S) / 61.8 (L) / 63.0 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Propeller Guide
Maximum propeller speed in rpm
1,400
Control
Remote throttle
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Motor with tiller control and integrated on-board computer with display
emergency stop magnetic chip
connection cable set for two Power 48-5000 batteries (total length approx. 4.5 m) incl. main switch and battery terminal screws
5-pin data cable (5m), standard propeller v22/p10k and sacrificial anodes (Al)
TorqLink Gateway Set (2217-00)
Also you can check product : Torqeedo Cruise 10.0 TS Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons. The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Torqeedo Cruise 10.0 TS Electric Outboard NEW (Cruise 10.0 TS)
Torqeedo Cruise 10.0 TS Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.
The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Tiller-equipped version of the Cruise 10.0
12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
Electric tilting device for ease of operation
Easy handling thanks to low-voltage level (48 Volt)
Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
Slimline construction - elegant and modern
Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
Rugged pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater.
Specifications :
Input power in watts
10,000
Propulsive power in watts
5,600
Comparable petrol outboards (propulsive power)
20 HP
Comparable petrol outboards (thrust)
25 HP
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Total weight in kg
60.3 (S) / 61.8 (L) / 63.0 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Propeller Guide
Maximum propeller speed in rpm
1,400
Control
Remote throttle
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Motor with tiller control and integrated on-board computer with display
emergency stop magnetic chip
connection cable set for two Power 48-5000 batteries (total length approx. 4.5 m) incl. main switch and battery terminal screws
5-pin data cable (5m), standard propeller v22/p10k and sacrificial anodes (Al)
TorqLink Gateway Set (2217-00)
Also you can check product : Torqeedo Cruise 12.0 RL TorqLink Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.
The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Tiller-equipped version of the Cruise 10.0
12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
Electric tilting device for ease of operation
Easy handling thanks to low-voltage level (48 Volt)
Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
Slimline construction - elegant and modern
Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Benefits:
High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
Rugged pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater.
Specifications :
Input power in watts
10,000
Propulsive power in watts
5,600
Comparable petrol outboards (propulsive power)
20 HP
Comparable petrol outboards (thrust)
25 HP
Maximum overall efficiency in %
56
Static thrust in lbs*
≤ 405
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Total weight in kg
60.3 (S) / 61.8 (L) / 63.0 (XL)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options
v32/p10k & v15/p10k
Propeller Guide
Maximum propeller speed in rpm
1,400
Control
Remote throttle
Steering
Provision to connect to standard remote steering
Tilting device
Electrohydraulic tilt device with overload protection.
Tilt angle
-45°
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Motor with tiller control and integrated on-board computer with display
emergency stop magnetic chip
connection cable set for two Power 48-5000 batteries (total length approx. 4.5 m) incl. main switch and battery terminal screws
5-pin data cable (5m), standard propeller v22/p10k and sacrificial anodes (Al)
TorqLink Gateway Set (2217-00)
Also you can check product : Torqeedo Cruise 12.0 RL TorqLink Electric Outboard NEW
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons. The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Torqeedo Cruise 6.0 RL TorqLink Electric Outboard USED (Cruise 6.0 RL)
Torqeedo Cruise 6.0 RL TorqLink Electric Outboard USED
Cruise 6.0 is a 48-Volt, 9.9 horsepower-equivalent outboard perfect for boats up to 6 tons. The Cruise 6.0 R ships with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles.
All Cruise systems have a built-in GPS with on-board computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon with advanced helical gear design.
Maximum efficiency outboard
Improved robustness and improved corrosion protection
6,000 W input power, in terms of propulsion is comparable with a 9.9-hp petrol outboard
Benefits:
High-efficiency outboard with 6,000 W input power, equivalent to a 9.9 HP petrol outboard.
Pair with Power 48-5000 for best performance and accurate range/runtime functionality
R model includes remote steering link arm for use with industry standard steering systems
Your choice of TorqLink throttles (We recommend part number 1976-00 TorqLink throttle with color display)
Rugged aluminum pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties. Ships with anode set for fresh and saltwater.
Also compatible with third-party batteries (48-volt) but careful matching to motor power requirements is needed and additional cable set part number 1990-00 is required.
Specifications :
Input power in watts
6000
Propulsive power in watts
3504
Comparable petrol outboards (propulsive power)
9.9 HP
Comparable petrol outboards (thrust)
15 HP
Maximum overall efficiency in %
58
Static thrust in lbs*
230
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Total weight in kg
20.6 (S) / 21,0 (L)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
62.5 (S) / 75.5 (L)
Standard propeller v = speed in km/h at p = power in watts
Propeller B 12,5 x 17 HSP
Alternative propeller options
Propeller B 12 x 13 THR
Propeller Guide
Maximum propeller speed in rpm
1130
Control
Remote throttle
TorqLink
Yes
Steering
Provision to connect to standard remote steering; lockable
Tilting device
Manual with grounding protection
Tilt angle
360° lockable
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with data communication
connection to remote steering
cable set (14 ft, 35 mm²) including main switch and propeller B 12.5 x 17 HSP
TorqLink throttle with color display
Remote throttle
Also you can check product : Torqeedo Cruise 10.0 TS Electric Outboard NEW
Cruise 6.0 is a 48-Volt, 9.9 horsepower-equivalent outboard perfect for boats up to 6 tons. The Cruise 6.0 R ships with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles.
All Cruise systems have a built-in GPS with on-board computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon with advanced helical gear design.
Maximum efficiency outboard
Improved robustness and improved corrosion protection
6,000 W input power, in terms of propulsion is comparable with a 9.9-hp petrol outboard
Benefits:
High-efficiency outboard with 6,000 W input power, equivalent to a 9.9 HP petrol outboard.
Pair with Power 48-5000 for best performance and accurate range/runtime functionality
R model includes remote steering link arm for use with industry standard steering systems
Your choice of TorqLink throttles (We recommend part number 1976-00 TorqLink throttle with color display)
Rugged aluminum pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties. Ships with anode set for fresh and saltwater.
Also compatible with third-party batteries (48-volt) but careful matching to motor power requirements is needed and additional cable set part number 1990-00 is required.
Specifications :
Input power in watts
6000
Propulsive power in watts
3504
Comparable petrol outboards (propulsive power)
9.9 HP
Comparable petrol outboards (thrust)
15 HP
Maximum overall efficiency in %
58
Static thrust in lbs*
230
Integrated battery
-
Nominal voltage
48
Final charging voltage
-
Total weight in kg
20.6 (S) / 21,0 (L)
Motor weight without battery in kg
-
Weight of integrated battery
-
Shaft length in cm
62.5 (S) / 75.5 (L)
Standard propeller v = speed in km/h at p = power in watts
Propeller B 12,5 x 17 HSP
Alternative propeller options
Propeller B 12 x 13 THR
Propeller Guide
Maximum propeller speed in rpm
1130
Control
Remote throttle
TorqLink
Yes
Steering
Provision to connect to standard remote steering; lockable
Tilting device
Manual with grounding protection
Tilt angle
360° lockable
Trim device
Manual, 4-step
Integrated on-board computer
Yes
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with data communication
connection to remote steering
cable set (14 ft, 35 mm²) including main switch and propeller B 12.5 x 17 HSP
TorqLink throttle with color display
Remote throttle
Also you can check product : Torqeedo Cruise 10.0 TS Electric Outboard NEW
Cruise 6.0 is a 48-Volt, 9.9 horsepower-equivalent outboard perfect for boats up to 6 tons. The Cruise 6.0 R ships with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles. All Cruise systems have a built-in GPS with on-board computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon with advanced helical gear design.
Torqeedo Cruise 6.0 RL ( 48V ) Long Shaft Electric Outboard NEW (Cruise 6.0 RL ( 48V ))
Torqeedo Cruise 6.0 RL ( 48V ) Electric Outboard NEW
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP).
All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles ( Include ).
The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
Maximum efficiency outboard
Improved robustness and improved corrosion protection
6,000 W input power, in terms of propulsion is comparable with a 9.9-hp petrol outboard
Benefits:
One unified platform: TorqLink & 48V
Full compatibility with all TorqLink and 48V components
Easy and intuitive installation
High-quality shaft head design
Increased robustness due to metallic shaft cage
App connectivity (requires Torqeedo Throttle 1976-00)
Over-the-air updates via the app (using Throttle 1976-00)
Improved error handling with detailed error descriptions
Concrete troubleshooting instructions in the app
Increased motor reliability through enhanced hardware & software self-protection
Note: App features and OTA updates require the Torqeedo Throttle (1976-00) and a compatible mobile device.
Specifications :
Input power in watts
6000
HP equivalent
9 HP
Static thrust
230 lbs
Nominal voltage
48 V
Weight (motor only)
20.8 kg (RS) / 22.4 kg (TS)
Recommended battery
Power 48-5000
Battery (Wh) / Weight (kg)
5000 / 37
Shaft length
62.5 cm (S) / 75.5 cm (L)
Standard propeller
Propeller B 12 x 10.5 WDR
Maximum propeller speed in rpm
1200
Control
Tiller, Remote throttle
TorqLink
TorqLink
Tilting device
Manual with impact protection
Trim device
Manual, 4-step
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with data communication
Connection to remote steering
Cable set (14 ft, 35 mm²)
Main switch
Propeller B 12.5 x 17 HSP
Remote Throttle
Also you can check product : Torqeedo Cruise 6.0 RL TorqLink Electric Outboard USED
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP).
All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles ( Include ).
The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
Maximum efficiency outboard
Improved robustness and improved corrosion protection
6,000 W input power, in terms of propulsion is comparable with a 9.9-hp petrol outboard
Benefits:
One unified platform: TorqLink & 48V
Full compatibility with all TorqLink and 48V components
Easy and intuitive installation
High-quality shaft head design
Increased robustness due to metallic shaft cage
App connectivity (requires Torqeedo Throttle 1976-00)
Over-the-air updates via the app (using Throttle 1976-00)
Improved error handling with detailed error descriptions
Concrete troubleshooting instructions in the app
Increased motor reliability through enhanced hardware & software self-protection
Note: App features and OTA updates require the Torqeedo Throttle (1976-00) and a compatible mobile device.
Specifications :
Input power in watts
6000
HP equivalent
9 HP
Static thrust
230 lbs
Nominal voltage
48 V
Weight (motor only)
20.8 kg (RS) / 22.4 kg (TS)
Recommended battery
Power 48-5000
Battery (Wh) / Weight (kg)
5000 / 37
Shaft length
62.5 cm (S) / 75.5 cm (L)
Standard propeller
Propeller B 12 x 10.5 WDR
Maximum propeller speed in rpm
1200
Control
Tiller, Remote throttle
TorqLink
TorqLink
Tilting device
Manual with impact protection
Trim device
Manual, 4-step
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with data communication
Connection to remote steering
Cable set (14 ft, 35 mm²)
Main switch
Propeller B 12.5 x 17 HSP
Remote Throttle
Also you can check product : Torqeedo Cruise 6.0 RL TorqLink Electric Outboard USED
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP). All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (include). The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
Torqeedo Cruise 6.0 RS ( 48V ) Short Shaft Electric Outboard NEW (Cruise 6.0 RS ( 48V ))
Torqeedo Cruise 6.0 RS ( 48V ) Short Shaft Electric Outboard NEW
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP).
All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles ( Include ).
The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
Maximum efficiency outboard
Improved robustness and improved corrosion protection
6,000 W input power, in terms of propulsion is comparable with a 9.9-hp petrol outboard
Benefits:
One unified platform: TorqLink & 48V
Full compatibility with all TorqLink and 48V components
Easy and intuitive installation
High-quality shaft head design
Increased robustness due to metallic shaft cage
App connectivity (requires Torqeedo Throttle 1976-00)
Over-the-air updates via the app (using Throttle 1976-00)
Improved error handling with detailed error descriptions
Concrete troubleshooting instructions in the app
Increased motor reliability through enhanced hardware & software self-protection
Note: App features and OTA updates require the Torqeedo Throttle (1976-00) and a compatible mobile device.
Specifications :
Input power in watts
6000
HP equivalent
9 HP
Static thrust
230 lbs
Nominal voltage
48 V
Weight (motor only)
20.8 kg (RS) / 22.4 kg (TS)
Recommended battery
Power 48-5000
Battery (Wh) / Weight (kg)
5000 / 37
Shaft length
62.5 cm (S) / 75.5 cm (L)
Standard propeller
Propeller B 12 x 10.5 WDR
Maximum propeller speed in rpm
1200
Control
Tiller, Remote throttle
TorqLink
TorqLink
Tilting device
Manual with impact protection
Trim device
Manual, 4-step
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with data communication
Connection to remote steering
Cable set (14 ft, 35 mm²)
Main switch
Propeller B 12.5 x 17 HSP
Remote Throttle
Also you can check product : Torqeedo Cruise 6.0 RL ( 48V ) Long Shaft Electric Outboard NEW
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP).
All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles ( Include ).
The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
Maximum efficiency outboard
Improved robustness and improved corrosion protection
6,000 W input power, in terms of propulsion is comparable with a 9.9-hp petrol outboard
Benefits:
One unified platform: TorqLink & 48V
Full compatibility with all TorqLink and 48V components
Easy and intuitive installation
High-quality shaft head design
Increased robustness due to metallic shaft cage
App connectivity (requires Torqeedo Throttle 1976-00)
Over-the-air updates via the app (using Throttle 1976-00)
Improved error handling with detailed error descriptions
Concrete troubleshooting instructions in the app
Increased motor reliability through enhanced hardware & software self-protection
Note: App features and OTA updates require the Torqeedo Throttle (1976-00) and a compatible mobile device.
Specifications :
Input power in watts
6000
HP equivalent
9 HP
Static thrust
230 lbs
Nominal voltage
48 V
Weight (motor only)
20.8 kg (RS) / 22.4 kg (TS)
Recommended battery
Power 48-5000
Battery (Wh) / Weight (kg)
5000 / 37
Shaft length
62.5 cm (S) / 75.5 cm (L)
Standard propeller
Propeller B 12 x 10.5 WDR
Maximum propeller speed in rpm
1200
Control
Tiller, Remote throttle
TorqLink
TorqLink
Tilting device
Manual with impact protection
Trim device
Manual, 4-step
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with data communication
Connection to remote steering
Cable set (14 ft, 35 mm²)
Main switch
Propeller B 12.5 x 17 HSP
Remote Throttle
Also you can check product : Torqeedo Cruise 6.0 RL ( 48V ) Long Shaft Electric Outboard NEW
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP). All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (include). The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
Torqeedo Cruise 6.0 TL ( 48V ) Long Shaft Electric Outboard NEW (Cruise 6.0 TL)
Torqeedo Cruise 6.0 TL ( 48V ) Long Shaft Electric Outboard NEW
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP).
All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (Includes).
The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
Maximum efficiency outboard with tiller control
Improved robustness and improved corrosion protection
6,000 W input power, in terms of propulsion is comparable with an 9.9-hp petrol outboard
Integrated on-board computer with GPS-based range calculation
Benefits:
One unified platform: TorqLink & 48V
Full compatibility with all TorqLink and 48V components
Easy and intuitive installation
High-quality shaft head design
Increased robustness due to metallic shaft cage
App connectivity (requires Torqeedo Throttle 1976-00)
Over-the-air updates via the app (using Throttle 1976-00)
Improved error handling with detailed error descriptions
Concrete troubleshooting instructions in the app
Increased motor reliability through enhanced hardware & software self-protection
Note: App features and OTA updates require the Torqeedo Throttle (1976-00) and a compatible mobile device.
Specifications :
Input power in watts
6000
HP equivalent
9 HP
Static thrust
230 lbs
Nominal voltage
48 V
Weight (motor only)
20.8 kg (RS) / 22.4 kg (TS)
Recommended battery
Power 48-5000
Battery (Wh) / Weight (kg)
5000 / 37
Shaft length
62.5 cm (S) / 75.5 cm (L)
Standard propeller
Propeller B 12 x 10.5 WDR
Maximum propeller speed in rpm
1200
Control
Tiller, Remote throttle
TorqLink
TorqLink
Tilting device
Manual with impact protection
Trim device
Manual, 4-step
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with tiller steering
Integrated on-board computer with GPS-based range calculation
Cable set (S: 4,0m L: 4,12m, 35 mm²)
Main switch
Propeller B 12.5 x 17 HSP
Emergency magnetic stop key
Also you can check product : Torqeedo Cruise 6.0 RS ( 48V ) Short Shaft Electric Outboard NEW
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP).
All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (Includes).
The TorqView app is a smart companion app for users of Torqeedo electric motors. It offers a wide range of features that make the boating experience safer, more comfortable, and more informative. Key features include live connection to the motor, trip analysis, real-time tracking, and over-the-air updates.
Maximum efficiency outboard with tiller control
Improved robustness and improved corrosion protection
6,000 W input power, in terms of propulsion is comparable with an 9.9-hp petrol outboard
Integrated on-board computer with GPS-based range calculation
Benefits:
One unified platform: TorqLink & 48V
Full compatibility with all TorqLink and 48V components
Easy and intuitive installation
High-quality shaft head design
Increased robustness due to metallic shaft cage
App connectivity (requires Torqeedo Throttle 1976-00)
Over-the-air updates via the app (using Throttle 1976-00)
Improved error handling with detailed error descriptions
Concrete troubleshooting instructions in the app
Increased motor reliability through enhanced hardware & software self-protection
Note: App features and OTA updates require the Torqeedo Throttle (1976-00) and a compatible mobile device.
Specifications :
Input power in watts
6000
HP equivalent
9 HP
Static thrust
230 lbs
Nominal voltage
48 V
Weight (motor only)
20.8 kg (RS) / 22.4 kg (TS)
Recommended battery
Power 48-5000
Battery (Wh) / Weight (kg)
5000 / 37
Shaft length
62.5 cm (S) / 75.5 cm (L)
Standard propeller
Propeller B 12 x 10.5 WDR
Maximum propeller speed in rpm
1200
Control
Tiller, Remote throttle
TorqLink
TorqLink
Tilting device
Manual with impact protection
Trim device
Manual, 4-step
Stepless forward/reverse drive
Yes
INCLUDED :
Outboard with tiller steering
Integrated on-board computer with GPS-based range calculation
Cable set (S: 4,0m L: 4,12m, 35 mm²)
Main switch
Propeller B 12.5 x 17 HSP
Emergency magnetic stop key
Also you can check product : Torqeedo Cruise 6.0 RS ( 48V ) Short Shaft Electric Outboard NEW
The Cruise 6.0 (48 V) is the motor of choice for displacement boats up to 6 tons or sailboats up to 35 feet. The Cruise 6.0 (48 V) is the entry point into the world of planing, as it is our most budget-friendly motor capable of achieving planing speeds. Choose from short or long shaft, remote-steered (R), a tiller model (T), or fixed pod (FP). All Cruise 6.0 (48 V) are equipped with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (Includes).
Torqeedo Power 48-5000 Lithium-Ion Battery 44.4V NEW (Power 48-5000)
Torqeedo Power 48-5000 Lithium-Ion Battery 44.4V NEW
A class of its own in lithium batteries for boats: 70% more energy density and 50% longer cycle life than typical lithium LiFePO4 batteries.
With Power 48-5000, Torqeedo brings a new class of lithium batteries to the market. Based on automotive technology and BMW i battery modules, Power 48-5000 delivers industry-leading value with its combination of energy density, long service life, ISO standards compliance, and cost.
FEATURE
High-performance lithium battery 5,000 Wh
Rated voltage 44.4 V
Weight 36.5 kg
Including battery management system with integrated protection against overcharging, short circuit, deep discharge, polarity reversal, overheating and submersion
Waterproof to IP67
SPECIFICATIONS :
Capacity
5275 Wh
Nominal voltage
44.4 V
Final discharging voltage
36.0 V
Maximum discharge rate
200 A
Maximum discharge rate at nominal voltage
8,800 W
Weight
36.5 kg
Dimensions (L x H x B)
506 mm x 224 mm x 386 mm
Volume
31 l
Battery chemistry
LMO-NMC
Benchmark information
Energy density (weight)
145 Wh/kg
Energy density (volume)
160 Wh/l
Price-performance
1,00 EUR/Wh
Power density (weight)
250 W/kg
Power density (volume)
280 W/l
Lifetime data
Cycle lifetime
>3000 cycles with 80% discharge depth at 25°C result in capacity loss of approx. 20%
Average annual capacity loss
Approx. 4% at 25°C ambient temperature
Usage information
Ambient temperature, discharging
-10°C up to 50°C
Ambient temperature, charging
0°C up to 45°C
Ambient temperature, storage
-25°C up to 60°C
Typical storage time at 50% SOC
Max. connections
1S1P or 1S2P
Max. quick charge
120 A
Protection class
IP67 ( Waterproof, can be submerged to depth of 1 metre for 30 minutes without damage )
Battery composition
Number of cells
12S1P BEV
Cell housing
Capacity per cell
Nominal voltage per cell
Cell connection
Battery management system and safety
On-off switch
Yes/CAN
Cell balancing
Yes
High-current and short-circuit protection
Deep discharge protection
Yes, cut-off at < 36 V
Protection against polarity reversal
Yes
Individual cell voltage monitoring
Yes
Current interruption device (CID) for each cell
Yes
Safety vent for each cell
Yes
Cell temperature monitoring
Yes
Temperature monitoring of battery electronics
Yes
Automatic shutdown in the event of submersion
Yes
Information system
Interface
CAN
Electronic battery identification
Yes ( Important for connecting multiple batteries into battery banks )
Data logging
Yes ( Important for warranty information )
INCLUDED :
Power 48-5000 high-performance lithium battery 5,000 Wh (44.4 V)
Cable for communication with TQ- CAN
Also you can check product : Torqeedo Cruise 6.0 TL ( 48V ) Long Shaft Electric Outboard NEW
A class of its own in lithium batteries for boats: 70% more energy density and 50% longer cycle life than typical lithium LiFePO4 batteries. With Power 48-5000, Torqeedo brings a new class of lithium batteries to the market. Based on automotive technology and BMW i battery modules, Power 48-5000 delivers industry-leading value with its combination of energy density, long service life, ISO standards compliance, and cost.
Torqeedo Power 24-3500 High-Performance Lithium Battery 25.2 V NEW (Power 24-3500)
Torqeedo Power 24-3500 High-Performance Lithium Battery 25.2 V NEW
The perfect high-end lithium battery for the Cruise. Or for your on-board power supply.
Choosing lithium means choosing high performance. Choosing the Power 24-3500, also means choosing an unrivalled level of professional safety. The Power 24-3500 is equipped with a comprehensive safety system combining the requirement for general operating safety with safety in maritime use.
Thanks to plug&play, the Power 24-3500 can be installed and activated in a few short steps. And with a 5-stage safety concept it is arguably the safest battery of its kind for boats.
Its long life expectancy and low capacity losses are convincing.
High-performance lithium battery with 3,679 Wh
Energy power density to 145 Wh / kg
Weight is just 25.4 kilograms
12 hours to fully recharge with the standard 350 watt charger
Optional 1700 watt fast charger recharges under 2 hours
Waterproof to IP67
Including battery management system with integrated protection against overcharging, short circuit, deep discharge, polarity reversal, overheating and submersion
It is possible to charge the battery during operation also via solar power
Benefits:
Up to 70% less battery weight than AGM or gel batteries
Maximum safety thanks to 5-tier safety system, including battery management system with one-fault safety
Simple operation
Waterproof to IP67
SPECIFICATIONS :
Capacity
3,679 Wh
Nominal voltage
25.2 V
Final discharging voltage
21.0 V
Nominal charge
139,2 Ah
Maximum discharge rate
180 A ( Safety function against short-circuit, must not be used as starter battery )
Maximum discharge rate at nominal voltage
4,660 W
Weight
25.4 kg
Dimensions (L x H x B)
577.5 mm x 218.5 mm x 253.5 mm
Volume
32 l
Battery chemistry
Li-NCA
Benchmark information
Energy density (weight)
145 Wh/kg
Energy density (volume)
115 Wh/l
Power density (weight)
183 W/kg
Power density (volume)
146 W/l
Lifetime data
Cycle lifetime
800 cycles with 100% discharge depth at 25°C ( result in capacity loss of approx. 25% )
Average annual capacity loss
Approx. 4% at 25°C ambient temperature
Usage information
Cell operating temperature
-20°C to 55°C Battery protects itself
Cell charging temperature
0°C to 45°C Battery protects itself
Temperature (storage)
-30°C to 50°C
Typical storage time at 50% SOC
1 year When switched off
Max. connections
2S8P or 1S16P Please contact Torqeedo if larger battery banks required
Max. quick charge
50 A ( Charging time < 1.2 hours )
Protection class
IP67 ( Waterproof, can be submerged to depth of 1 metre for 30 minutes without damage )
Battery composition
Number of cells
336
Cell housing
Steel cylinder safety cells
Capacity per cell
3 Ah
Nominal voltage per cell
3.65 V
Cell connection
7s48p
Battery management system and safety
On-off switch
Yes ( Via Cruise or motors or on/off switch )
Cell balancing
Yes ( Increases the battery lifetime )
High-current and short-circuit protection
Yes ( 4-level safety cut-out mechanism to protect against short-circuits and overcurrent )
Deep discharge protection
Yes, cut-off at < 2.7 V per cell,
charge protection at < 2 V per cell
Protection against incorrect charging
Yes ( 3 protection levels against overcharging )
Protection against polarity reversal
Yes
Individual cell voltage monitoring
Yes
Current interruption device (CID) for each cell
Yes
Safety vent for each cell
Yes
Cell temperature monitoring
Yes
Temperature monitoring of battery electronics
Yes
Automatic shutdown in the event of submersion
Yes
Information system
Interface
RS485
Electronic battery identification
Yes ( Important for connecting multiple batteries into battery banks )
Data logging
Yes ( Important for warranty information )
INCLUDED :
Power 24-3500 high-performance lithium battery 3,500 Wh (25.2 V)
Data cable for connection to Cruise drives
Also you can check product : Torqeedo Power 48-5000 Lithium-Ion Battery 44.4V NEW
The perfect high-end lithium battery for the Cruise. Or for your on-board power supply.
Choosing lithium means choosing high performance. Choosing the Power 24-3500, also means choosing an unrivalled level of professional safety. The Power 24-3500 is equipped with a comprehensive safety system combining the requirement for general operating safety with safety in maritime use.
Thanks to plug&play, the Power 24-3500 can be installed and activated in a few short steps. And with a 5-stage safety concept it is arguably the safest battery of its kind for boats.
Its long life expectancy and low capacity losses are convincing.
High-performance lithium battery with 3,679 Wh
Energy power density to 145 Wh / kg
Weight is just 25.4 kilograms
12 hours to fully recharge with the standard 350 watt charger
Optional 1700 watt fast charger recharges under 2 hours
Waterproof to IP67
Including battery management system with integrated protection against overcharging, short circuit, deep discharge, polarity reversal, overheating and submersion
It is possible to charge the battery during operation also via solar power
Benefits:
Up to 70% less battery weight than AGM or gel batteries
Maximum safety thanks to 5-tier safety system, including battery management system with one-fault safety
Simple operation
Waterproof to IP67
SPECIFICATIONS :
Capacity
3,679 Wh
Nominal voltage
25.2 V
Final discharging voltage
21.0 V
Nominal charge
139,2 Ah
Maximum discharge rate
180 A ( Safety function against short-circuit, must not be used as starter battery )
Maximum discharge rate at nominal voltage
4,660 W
Weight
25.4 kg
Dimensions (L x H x B)
577.5 mm x 218.5 mm x 253.5 mm
Volume
32 l
Battery chemistry
Li-NCA
Benchmark information
Energy density (weight)
145 Wh/kg
Energy density (volume)
115 Wh/l
Power density (weight)
183 W/kg
Power density (volume)
146 W/l
Lifetime data
Cycle lifetime
800 cycles with 100% discharge depth at 25°C ( result in capacity loss of approx. 25% )
Average annual capacity loss
Approx. 4% at 25°C ambient temperature
Usage information
Cell operating temperature
-20°C to 55°C Battery protects itself
Cell charging temperature
0°C to 45°C Battery protects itself
Temperature (storage)
-30°C to 50°C
Typical storage time at 50% SOC
1 year When switched off
Max. connections
2S8P or 1S16P Please contact Torqeedo if larger battery banks required
Max. quick charge
50 A ( Charging time < 1.2 hours )
Protection class
IP67 ( Waterproof, can be submerged to depth of 1 metre for 30 minutes without damage )
Battery composition
Number of cells
336
Cell housing
Steel cylinder safety cells
Capacity per cell
3 Ah
Nominal voltage per cell
3.65 V
Cell connection
7s48p
Battery management system and safety
On-off switch
Yes ( Via Cruise or motors or on/off switch )
Cell balancing
Yes ( Increases the battery lifetime )
High-current and short-circuit protection
Yes ( 4-level safety cut-out mechanism to protect against short-circuits and overcurrent )
Deep discharge protection
Yes, cut-off at < 2.7 V per cell,
charge protection at < 2 V per cell
Protection against incorrect charging
Yes ( 3 protection levels against overcharging )
Protection against polarity reversal
Yes
Individual cell voltage monitoring
Yes
Current interruption device (CID) for each cell
Yes
Safety vent for each cell
Yes
Cell temperature monitoring
Yes
Temperature monitoring of battery electronics
Yes
Automatic shutdown in the event of submersion
Yes
Information system
Interface
RS485
Electronic battery identification
Yes ( Important for connecting multiple batteries into battery banks )
Data logging
Yes ( Important for warranty information )
INCLUDED :
Power 24-3500 high-performance lithium battery 3,500 Wh (25.2 V)
Data cable for connection to Cruise drives
Also you can check product : Torqeedo Power 48-5000 Lithium-Ion Battery 44.4V NEW
The perfect high-end lithium battery for the Cruise. Or for your on-board power supply.
Choosing lithium means choosing high performance. Choosing the Power 24-3500, also means choosing an unrivalled level of professional safety. The Power 24-3500 is equipped with a comprehensive safety system combining the requirement for general operating safety with safety in maritime use.
Thanks to plug&play, the Power 24-3500 can be installed and activated in a few short steps. And with a 5-stage safety concept it is arguably the safest battery of its kind for boats.Its long life expectancy and low capacity losses are convincing.
Torqeedo Travel XP RS 5HP 1600W Remote Control-Power Package NEW (Travel XP RS)
Torqeedo Travel XP RS 5HP 1600W Electric Outboard Power Package NEW
Bigger boat? More challenging conditions? Look to the Power Package! The Travel XP forms the heart of the Power Package, and with 25% more thrust than the Travel, it has the grit to get the job done. At 1600 W of pure electric power, the Travel XP is the most powerful outboard with an integrated battery available from industrial production. This 5 HP-equivalent, high-thrust outboard is perfect for heavier boats up to 2 tons or more demanding applications, boating in coastal waters, or overcoming windy or wavy conditions. The ultra-quiet and reliable direct drive motor is lightweight and easy to handle at just 12.6 kg (27.8 lbs). It's easy to install and use, too, with a stable handle on the shaft head, a handy lever for quick steering adjustments (360°//±60°//fixed), and flexible tilt and trim positions. Emission-free boating just powered up - experience the Travel XP today!
The backlit color display is built right in, with all the information you need including speed, consumption, charge status, and remaining range in time or distance. WiFi and BlueTooth come standard, so you can easily connect to the TorqView app for maps, trip logging, usage stats, maintenance info, OTA updates and other high-tech features.
The battery is the core of an emission-free drive system, and the Travel XP's Power Package benefits from a whopping 1512 Wh integrated lithium pack that's still easy to handle at 9.6 kg (21 lbs). A click-and-play design means no more cables to connect, and a handy LED lets you know charge status at a glance, even when your battery is not connected. Simply plug in to charge with the fast 180 W mains charger, charge directly from the boat with the 12V/24V charge cable, or even go solar with the solar charge cable and solar panels up to 200 Wp! Torqeedo has offered lithium battery-powered marine drives since 2005, and we offer the most comprehensive and integrated protection and safety concept for lithium batteries on the market. Charge into the future of marine mobility with the Power Package!
Powerful performance
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions.
5 HP-equivalent
With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.
Lightweight and portable
The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.
Lithium battery
The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.
Emission-free boating
Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
Length of shaft
62,5cm (24.6 inch) (Travel S), 75cm (29.5 inch)(Travel L)
Available with tiller control (type T) or remote control (type R)
Smart companion app
The TorqView App is a smart companion app for users of Torqeedo electric motors. It offers a variety of functions that make the boating experience safer, more comfortable, and more informative. Here is an overview of the main features:
Live connection to the motor
Trip analysis
Real-time tracking
Over-the-air updates
As tested on a 3.8 m inflatable dinghy
Speed in km/h* Range in km* Running time in hours*
Slow 6.5 20.4 3:08
Half throttle 7.8 12.2 1:34
Full throttle 10 7.8 0:47
As tested on a 2-ton sailboat
Speed in km/h* Range in km* Running time in hours*
Slow 6.1 13 3:08
Half throttle 7.2 11.3 1:34
Full throttle 8.9 6.7 0:47
Technical Data
Input power (continuous)
1.600 W
Recommend Battery (Li-Ion)
1.425 Wh
Shaft Length
S: 62,5 cm (ideal for 15 inch transom height)
L: 75,0 cm (ideal for 20 inch transom height)
Weight (incl. batttery)
T: S: 22,2 kg / L: 22,6 kg
R: S: 23,2 kg / L: 23,6 kg
INCLUDED :
Torqeedo Travel XP RS Outboard motor
1425 Wh Battery
Torqlink throttle (control type R)
Emergency stop magnetic chip
Battery Charger 180W
Propeller 11x8 WDR
Shaft anode for motor shaft
Fin
Operating instructions
Also you can check product : Torqeedo Power 24-3500 High-Performance Lithium Battery 25.2 V NEW
Bigger boat? More challenging conditions? Look to the Power Package! The Travel XP forms the heart of the Power Package, and with 25% more thrust than the Travel, it has the grit to get the job done. At 1600 W of pure electric power, the Travel XP is the most powerful outboard with an integrated battery available from industrial production. This 5 HP-equivalent, high-thrust outboard is perfect for heavier boats up to 2 tons or more demanding applications, boating in coastal waters, or overcoming windy or wavy conditions. The ultra-quiet and reliable direct drive motor is lightweight and easy to handle at just 12.6 kg (27.8 lbs). It's easy to install and use, too, with a stable handle on the shaft head, a handy lever for quick steering adjustments (360°//±60°//fixed), and flexible tilt and trim positions. Emission-free boating just powered up - experience the Travel XP today!
The backlit color display is built right in, with all the information you need including speed, consumption, charge status, and remaining range in time or distance. WiFi and BlueTooth come standard, so you can easily connect to the TorqView app for maps, trip logging, usage stats, maintenance info, OTA updates and other high-tech features.
The battery is the core of an emission-free drive system, and the Travel XP's Power Package benefits from a whopping 1512 Wh integrated lithium pack that's still easy to handle at 9.6 kg (21 lbs). A click-and-play design means no more cables to connect, and a handy LED lets you know charge status at a glance, even when your battery is not connected. Simply plug in to charge with the fast 180 W mains charger, charge directly from the boat with the 12V/24V charge cable, or even go solar with the solar charge cable and solar panels up to 200 Wp! Torqeedo has offered lithium battery-powered marine drives since 2005, and we offer the most comprehensive and integrated protection and safety concept for lithium batteries on the market. Charge into the future of marine mobility with the Power Package!
Powerful performance
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions.
5 HP-equivalent
With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.
Lightweight and portable
The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.
Lithium battery
The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.
Emission-free boating
Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
Length of shaft
62,5cm (24.6 inch) (Travel S), 75cm (29.5 inch)(Travel L)
Available with tiller control (type T) or remote control (type R)
Smart companion app
The TorqView App is a smart companion app for users of Torqeedo electric motors. It offers a variety of functions that make the boating experience safer, more comfortable, and more informative. Here is an overview of the main features:
Live connection to the motor
Trip analysis
Real-time tracking
Over-the-air updates
As tested on a 3.8 m inflatable dinghy
Speed in km/h* Range in km* Running time in hours*
Slow 6.5 20.4 3:08
Half throttle 7.8 12.2 1:34
Full throttle 10 7.8 0:47
As tested on a 2-ton sailboat
Speed in km/h* Range in km* Running time in hours*
Slow 6.1 13 3:08
Half throttle 7.2 11.3 1:34
Full throttle 8.9 6.7 0:47
Technical Data
Input power (continuous)
1.600 W
Recommend Battery (Li-Ion)
1.425 Wh
Shaft Length
S: 62,5 cm (ideal for 15 inch transom height)
L: 75,0 cm (ideal for 20 inch transom height)
Weight (incl. batttery)
T: S: 22,2 kg / L: 22,6 kg
R: S: 23,2 kg / L: 23,6 kg
INCLUDED :
Torqeedo Travel XP RS Outboard motor
1425 Wh Battery
Torqlink throttle (control type R)
Emergency stop magnetic chip
Battery Charger 180W
Propeller 11x8 WDR
Shaft anode for motor shaft
Fin
Operating instructions
Also you can check product : Torqeedo Power 24-3500 High-Performance Lithium Battery 25.2 V NEW
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions. With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
Torqeedo Travel XP L 5HP 1600W Tiller Control-Power Package NEW (Travel XP L)
Torqeedo Travel XP L 5HP 1600W Tiller-Power Package NEW
Bigger boat? More challenging conditions? Look to the Power Package! The Travel XP forms the heart of the Power Package, and with 25% more thrust than the Travel, it has the grit to get the job done. At 1600 W of pure electric power, the Travel XP is the most powerful outboard with an integrated battery available from industrial production. This 5 HP-equivalent, high-thrust outboard is perfect for heavier boats up to 2 tons or more demanding applications, boating in coastal waters, or overcoming windy or wavy conditions. The ultra-quiet and reliable direct drive motor is lightweight and easy to handle at just 12.6 kg (27.8 lbs). It's easy to install and use, too, with a stable handle on the shaft head, a handy lever for quick steering adjustments (360°//±60°//fixed), and flexible tilt and trim positions. Emission-free boating just powered up - experience the Travel XP today!
The backlit color display is built right in, with all the information you need including speed, consumption, charge status, and remaining range in time or distance. WiFi and BlueTooth come standard, so you can easily connect to the TorqView app for maps, trip logging, usage stats, maintenance info, OTA updates and other high-tech features.
The battery is the core of an emission-free drive system, and the Travel XP's Power Package benefits from a whopping 1512 Wh integrated lithium pack that's still easy to handle at 9.6 kg (21 lbs). A click-and-play design means no more cables to connect, and a handy LED lets you know charge status at a glance, even when your battery is not connected. Simply plug in to charge with the fast 180 W mains charger, charge directly from the boat with the 12V/24V charge cable, or even go solar with the solar charge cable and solar panels up to 200 Wp! Torqeedo has offered lithium battery-powered marine drives since 2005, and we offer the most comprehensive and integrated protection and safety concept for lithium batteries on the market. Charge into the future of marine mobility with the Power Package!
Powerful performance
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions.
5 HP-equivalent
With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.
Lightweight and portable
The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.
Lithium battery
The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.
Emission-free boating
Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
Length of shaft
62,5cm (24.6 inch) (Travel S), 75cm (29.5 inch)(Travel L)
Available with tiller control (type T) or remote control (type R)
Smart companion app
The TorqView App is a smart companion app for users of Torqeedo electric motors. It offers a variety of functions that make the boating experience safer, more comfortable, and more informative. Here is an overview of the main features:
Live connection to the motor
Trip analysis
Real-time tracking
Over-the-air updates
As tested on a 3.8 m inflatable dinghy
Speed in km/h* Range in km* Running time in hours*
Slow 6.5 20.4 3:08
Half throttle 7.8 12.2 1:34
Full throttle 10 7.8 0:47
As tested on a 2-ton sailboat
Speed in km/h* Range in km* Running time in hours*
Slow 6.1 13 3:08
Half throttle 7.2 11.3 1:34
Full throttle 8.9 6.7 0:47
Technical Data
Input power (continuous)
1.600 W
Recommend Battery (Li-Ion)
1.425 Wh
Shaft Length
S: 62,5 cm (ideal for 15 inch transom height)
L: 75,0 cm (ideal for 20 inch transom height)
Weight (incl. batttery)
T: S: 22,2 kg / L: 22,6 kg
R: S: 23,2 kg / L: 23,6 kg
INCLUDED :
Torqeedo Travel XP L Outboard motor with tiller control
1425 Wh Battery
Torqlink throttle (control type R)
Emergency stop magnetic chip
Battery Charger 180W
Weedless propeller A 11x7,5 WDL
Shaft anode for motor shaft
Fin
Operating instructions
Also you can check product : Torqeedo Travel XP RL 5HP 1600W Remote Control-Power Package NEW
Bigger boat? More challenging conditions? Look to the Power Package! The Travel XP forms the heart of the Power Package, and with 25% more thrust than the Travel, it has the grit to get the job done. At 1600 W of pure electric power, the Travel XP is the most powerful outboard with an integrated battery available from industrial production. This 5 HP-equivalent, high-thrust outboard is perfect for heavier boats up to 2 tons or more demanding applications, boating in coastal waters, or overcoming windy or wavy conditions. The ultra-quiet and reliable direct drive motor is lightweight and easy to handle at just 12.6 kg (27.8 lbs). It's easy to install and use, too, with a stable handle on the shaft head, a handy lever for quick steering adjustments (360°//±60°//fixed), and flexible tilt and trim positions. Emission-free boating just powered up - experience the Travel XP today!
The backlit color display is built right in, with all the information you need including speed, consumption, charge status, and remaining range in time or distance. WiFi and BlueTooth come standard, so you can easily connect to the TorqView app for maps, trip logging, usage stats, maintenance info, OTA updates and other high-tech features.
The battery is the core of an emission-free drive system, and the Travel XP's Power Package benefits from a whopping 1512 Wh integrated lithium pack that's still easy to handle at 9.6 kg (21 lbs). A click-and-play design means no more cables to connect, and a handy LED lets you know charge status at a glance, even when your battery is not connected. Simply plug in to charge with the fast 180 W mains charger, charge directly from the boat with the 12V/24V charge cable, or even go solar with the solar charge cable and solar panels up to 200 Wp! Torqeedo has offered lithium battery-powered marine drives since 2005, and we offer the most comprehensive and integrated protection and safety concept for lithium batteries on the market. Charge into the future of marine mobility with the Power Package!
Powerful performance
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions.
5 HP-equivalent
With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.
Lightweight and portable
The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.
Lithium battery
The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.
Emission-free boating
Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
Length of shaft
62,5cm (24.6 inch) (Travel S), 75cm (29.5 inch)(Travel L)
Available with tiller control (type T) or remote control (type R)
Smart companion app
The TorqView App is a smart companion app for users of Torqeedo electric motors. It offers a variety of functions that make the boating experience safer, more comfortable, and more informative. Here is an overview of the main features:
Live connection to the motor
Trip analysis
Real-time tracking
Over-the-air updates
As tested on a 3.8 m inflatable dinghy
Speed in km/h* Range in km* Running time in hours*
Slow 6.5 20.4 3:08
Half throttle 7.8 12.2 1:34
Full throttle 10 7.8 0:47
As tested on a 2-ton sailboat
Speed in km/h* Range in km* Running time in hours*
Slow 6.1 13 3:08
Half throttle 7.2 11.3 1:34
Full throttle 8.9 6.7 0:47
Technical Data
Input power (continuous)
1.600 W
Recommend Battery (Li-Ion)
1.425 Wh
Shaft Length
S: 62,5 cm (ideal for 15 inch transom height)
L: 75,0 cm (ideal for 20 inch transom height)
Weight (incl. batttery)
T: S: 22,2 kg / L: 22,6 kg
R: S: 23,2 kg / L: 23,6 kg
INCLUDED :
Torqeedo Travel XP L Outboard motor with tiller control
1425 Wh Battery
Torqlink throttle (control type R)
Emergency stop magnetic chip
Battery Charger 180W
Weedless propeller A 11x7,5 WDL
Shaft anode for motor shaft
Fin
Operating instructions
Also you can check product : Torqeedo Travel XP RL 5HP 1600W Remote Control-Power Package NEW
Travel XP is the most powerful outboard with an integrated battery available from industrial production. This 5 HP-equivalent, high-thrust outboard is perfect for heavier boats up to 2 tons or more demanding applications, boating in coastal waters, or overcoming windy or wavy conditions. The ultra-quiet and reliable direct drive motor is lightweight and easy to handle at just 12.6 kg (27.8 lbs). It's easy to install and use, too, with a stable handle on the shaft head, a handy lever for quick steering adjustments (360°//±60°//fixed), and flexible tilt and trim positions. Emission-free boating just powered up - experience the Travel XP today!
Torqeedo Travel 903 L Electric Outboard Included Battery and Charger NEW (Travel 903)
Torqeedo Travel 903 L Electric Outboard Included Battery and Charger NEW
Travel 903 presents itself in a functional and fresh design. Limited edition. Through a powerful evolution, it now offers an impressive 14% greater range compared to the Travel 1103 and is equipped with a highly efficient propeller. With an output of 900 W, it effortlessly powers boats up to 1.3 tonnes and is perfect for powering small sailing boats or exploring lakes and rivers with the family. It is unbeatable in the field of lightweight electric outboard motors and promises you an almost silent glide through the water and powerful thrust – 100% emission-free. It will redefine your boating experience – with the best value for money, no less!
Benefits:
900 W power output
High-capacity 915 Wh lithium-ion battery
Upgraded transom mount
Completely waterproof (IP67)
Instantaneous throttle response
On-board computer with GPS-based calculation of remaining range
Solar rechargeable – including during the voyage
Can be easily dismantled for transport and space-saving storage; the outboard on its own weighs only 11.3 kg (S) / 11.7 kg (L)
A clean affair: no matter how or where you store your Travel – there’s no risk of leakage or petrol smells
High-efficiency outboard with integrated 915 Wh high-performance lithium battery
Including onboard computer with GPS-based range calculation and charger
Ultra-quiet (33db), clean and compact
Silent direct-drive
Solar-chargeable
Instantaneous throttle response
Improved durability
2.5 HP equivalent
Completely waterproof (IP67)
High efficiency propeller
Total weight: 17.3 kg (S) / 17.7 kg (L)
Shaft length: short 62.5 cm / long 75 cm
Technical Data
Input power
900 W
Propulsive power
440 W
Static thrust
60 lbs**
Integrated battery (Li-Ion)
915 Wh
Shaft Length
S: 62.5 cm (24.6 inch)
L: 75 cm (29.5 inch)
INCLUDED :
Travel 903 with Battery, Charger
Emergency magnetic kill switch
Al Anode Set
Propeller v10/p1100
Also you can check product : Torqeedo Travel XP L 5HP 1600W Tiller Control-Power Package NEW
Travel 903 presents itself in a functional and fresh design. Limited edition. Through a powerful evolution, it now offers an impressive 14% greater range compared to the Travel 1103 and is equipped with a highly efficient propeller. With an output of 900 W, it effortlessly powers boats up to 1.3 tonnes and is perfect for powering small sailing boats or exploring lakes and rivers with the family. It is unbeatable in the field of lightweight electric outboard motors and promises you an almost silent glide through the water and powerful thrust – 100% emission-free. It will redefine your boating experience – with the best value for money, no less!
Benefits:
900 W power output
High-capacity 915 Wh lithium-ion battery
Upgraded transom mount
Completely waterproof (IP67)
Instantaneous throttle response
On-board computer with GPS-based calculation of remaining range
Solar rechargeable – including during the voyage
Can be easily dismantled for transport and space-saving storage; the outboard on its own weighs only 11.3 kg (S) / 11.7 kg (L)
A clean affair: no matter how or where you store your Travel – there’s no risk of leakage or petrol smells
High-efficiency outboard with integrated 915 Wh high-performance lithium battery
Including onboard computer with GPS-based range calculation and charger
Ultra-quiet (33db), clean and compact
Silent direct-drive
Solar-chargeable
Instantaneous throttle response
Improved durability
2.5 HP equivalent
Completely waterproof (IP67)
High efficiency propeller
Total weight: 17.3 kg (S) / 17.7 kg (L)
Shaft length: short 62.5 cm / long 75 cm
Technical Data
Input power
900 W
Propulsive power
440 W
Static thrust
60 lbs**
Integrated battery (Li-Ion)
915 Wh
Shaft Length
S: 62.5 cm (24.6 inch)
L: 75 cm (29.5 inch)
INCLUDED :
Travel 903 with Battery, Charger
Emergency magnetic kill switch
Al Anode Set
Propeller v10/p1100
Also you can check product : Torqeedo Travel XP L 5HP 1600W Tiller Control-Power Package NEW
Travel 903 presents itself in a functional and fresh design. Limited edition. Through a powerful evolution, it now offers an impressive 14% greater range compared to the Travel 1103 and is equipped with a highly efficient propeller. With an output of 900 W, it effortlessly powers boats up to 1.3 tonnes and is perfect for powering small sailing boats or exploring lakes and rivers with the family. It is unbeatable in the field of lightweight electric outboard motors and promises you an almost silent glide through the water and powerful thrust – 100% emission-free. It will redefine your boating experience – with the best value for money, no less!
Torqeedo Travel XP RL 5HP 1600W Remote Control-Power Package NEW (Travel XP RL)
Torqeedo Travel XP RL 5HP 1600W Remote Control-Power Package NEW
Bigger boat? More challenging conditions? Look to the Power Package! The Travel XP forms the heart of the Power Package, and with 25% more thrust than the Travel, it has the grit to get the job done. At 1600 W of pure electric power, the Travel XP is the most powerful outboard with an integrated battery available from industrial production. This 5 HP-equivalent, high-thrust outboard is perfect for heavier boats up to 2 tons or more demanding applications, boating in coastal waters, or overcoming windy or wavy conditions. The ultra-quiet and reliable direct drive motor is lightweight and easy to handle at just 12.6 kg (27.8 lbs). It's easy to install and use, too, with a stable handle on the shaft head, a handy lever for quick steering adjustments (360°//±60°//fixed), and flexible tilt and trim positions. Emission-free boating just powered up - experience the Travel XP today!
The backlit color display is built right in, with all the information you need including speed, consumption, charge status, and remaining range in time or distance. WiFi and BlueTooth come standard, so you can easily connect to the TorqView app for maps, trip logging, usage stats, maintenance info, OTA updates and other high-tech features.
The battery is the core of an emission-free drive system, and the Travel XP's Power Package benefits from a whopping 1512 Wh integrated lithium pack that's still easy to handle at 9.6 kg (21 lbs). A click-and-play design means no more cables to connect, and a handy LED lets you know charge status at a glance, even when your battery is not connected. Simply plug in to charge with the fast 180 W mains charger, charge directly from the boat with the 12V/24V charge cable, or even go solar with the solar charge cable and solar panels up to 200 Wp! Torqeedo has offered lithium battery-powered marine drives since 2005, and we offer the most comprehensive and integrated protection and safety concept for lithium batteries on the market. Charge into the future of marine mobility with the Power Package!
Powerful performance
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions.
5 HP-equivalent
With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.
Lightweight and portable
The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.
Lithium battery
The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.
Emission-free boating
Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
Length of shaft
62,5cm (24.6 inch) (Travel S), 75cm (29.5 inch)(Travel L)
Available with tiller control (type T) or remote control (type R)
Smart companion app
The TorqView App is a smart companion app for users of Torqeedo electric motors. It offers a variety of functions that make the boating experience safer, more comfortable, and more informative. Here is an overview of the main features:
Live connection to the motor
Trip analysis
Real-time tracking
Over-the-air updates
As tested on a 3.8 m inflatable dinghy
Speed in km/h* Range in km* Running time in hours*
Slow 6.5 20.4 3:08
Half throttle 7.8 12.2 1:34
Full throttle 10 7.8 0:47
As tested on a 2-ton sailboat
Speed in km/h* Range in km* Running time in hours*
Slow 6.1 13 3:08
Half throttle 7.2 11.3 1:34
Full throttle 8.9 6.7 0:47
Technical Data
Input power (continuous)
1.600 W
Recommend Battery (Li-Ion)
1.425 Wh
Shaft Length
S: 62,5 cm (ideal for 15 inch transom height)
L: 75,0 cm (ideal for 20 inch transom height)
Weight (incl. batttery)
T: S: 22,2 kg / L: 22,6 kg
R: S: 23,2 kg / L: 23,6 kg
INCLUDED :
Torqeedo Travel XP RL Outboard motor
1425 Wh Battery
Torqlink throttle (control type R)
Emergency stop magnetic chip
Battery Charger 180W
Propeller 11x8 WDR
Shaft anode for motor shaft
Fin
Operating instructions
Also you can check product : Torqeedo Travel XP RS 5HP 1600W Remote Control-Power Package NEW
Bigger boat? More challenging conditions? Look to the Power Package! The Travel XP forms the heart of the Power Package, and with 25% more thrust than the Travel, it has the grit to get the job done. At 1600 W of pure electric power, the Travel XP is the most powerful outboard with an integrated battery available from industrial production. This 5 HP-equivalent, high-thrust outboard is perfect for heavier boats up to 2 tons or more demanding applications, boating in coastal waters, or overcoming windy or wavy conditions. The ultra-quiet and reliable direct drive motor is lightweight and easy to handle at just 12.6 kg (27.8 lbs). It's easy to install and use, too, with a stable handle on the shaft head, a handy lever for quick steering adjustments (360°//±60°//fixed), and flexible tilt and trim positions. Emission-free boating just powered up - experience the Travel XP today!
The backlit color display is built right in, with all the information you need including speed, consumption, charge status, and remaining range in time or distance. WiFi and BlueTooth come standard, so you can easily connect to the TorqView app for maps, trip logging, usage stats, maintenance info, OTA updates and other high-tech features.
The battery is the core of an emission-free drive system, and the Travel XP's Power Package benefits from a whopping 1512 Wh integrated lithium pack that's still easy to handle at 9.6 kg (21 lbs). A click-and-play design means no more cables to connect, and a handy LED lets you know charge status at a glance, even when your battery is not connected. Simply plug in to charge with the fast 180 W mains charger, charge directly from the boat with the 12V/24V charge cable, or even go solar with the solar charge cable and solar panels up to 200 Wp! Torqeedo has offered lithium battery-powered marine drives since 2005, and we offer the most comprehensive and integrated protection and safety concept for lithium batteries on the market. Charge into the future of marine mobility with the Power Package!
Powerful performance
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions.
5 HP-equivalent
With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.
Lightweight and portable
The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.
Lithium battery
The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.
Emission-free boating
Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
Length of shaft
62,5cm (24.6 inch) (Travel S), 75cm (29.5 inch)(Travel L)
Available with tiller control (type T) or remote control (type R)
Smart companion app
The TorqView App is a smart companion app for users of Torqeedo electric motors. It offers a variety of functions that make the boating experience safer, more comfortable, and more informative. Here is an overview of the main features:
Live connection to the motor
Trip analysis
Real-time tracking
Over-the-air updates
As tested on a 3.8 m inflatable dinghy
Speed in km/h* Range in km* Running time in hours*
Slow 6.5 20.4 3:08
Half throttle 7.8 12.2 1:34
Full throttle 10 7.8 0:47
As tested on a 2-ton sailboat
Speed in km/h* Range in km* Running time in hours*
Slow 6.1 13 3:08
Half throttle 7.2 11.3 1:34
Full throttle 8.9 6.7 0:47
Technical Data
Input power (continuous)
1.600 W
Recommend Battery (Li-Ion)
1.425 Wh
Shaft Length
S: 62,5 cm (ideal for 15 inch transom height)
L: 75,0 cm (ideal for 20 inch transom height)
Weight (incl. batttery)
T: S: 22,2 kg / L: 22,6 kg
R: S: 23,2 kg / L: 23,6 kg
INCLUDED :
Torqeedo Travel XP RL Outboard motor
1425 Wh Battery
Torqlink throttle (control type R)
Emergency stop magnetic chip
Battery Charger 180W
Propeller 11x8 WDR
Shaft anode for motor shaft
Fin
Operating instructions
Also you can check product : Torqeedo Travel XP RS 5HP 1600W Remote Control-Power Package NEW
The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions. With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.The Travel XP is available with a high-capacity 1512 Wh lithium battery pack (9.6 kg or 21.2 lbs) that's easy to use, and it supports various charging options, including solar power.Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
- 1
